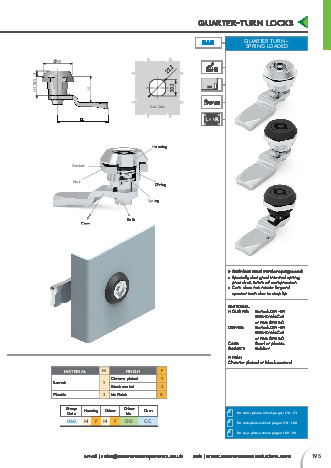

Catalogue Page
Quarter Turn Spring Loaded

The popular Quarter Turn Lock is used for cabinets and enclosures requiring vibration control.
The housing is equipped with an internal spring to provide 1.5 mm of compression.
An o-ring provides a seal between the spring and the driver.
This IP65 range, offers an extensive combination of materials and finishes along with grip range selection to suit many applications.
The cams will not rotate beyond quarter turn due to the stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1 or PA6 GFR 30
DRIVER: Zamak DIN-EN 1774-ZnAl4Cu1 or PA6 GFR 30
CAM: Steel or plastic
GASKET: Rubber

FINISH
Chrome plated or black coated
